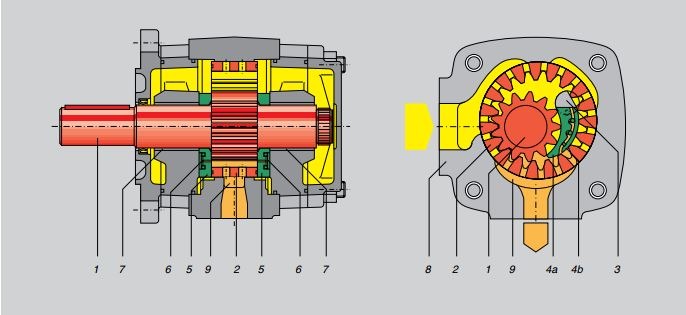

Voith Internal Gear Pump (IGP) Type IPC
- 1. Pinion shaft
- 2. Internal gear
- 3. Filler pin
- 4a. Filler segment carrier
- 4b. Filler sealing segment
- 5. Axial disc
- 6. Axial pressure area
- 7. Plain bearing
- 8. Housing carrier
- 9. Hydrostatic relieved bearing
- 10. End cover with bleeder screw
Internal Gear Pumps
Voith Internal Gear Pumps from Voith Turbo H+L hydraulic – your guarantee for:
- High-quality technology
- Robust design
- Low noise emissions
- Cost-effective operation
Voith Internal Gear Pumps include the following series:
- Low Pressure IGP Type IPN
- Low/Medium IGP Type IPNE/IPME
- Medium Pressure IGP Type IPM
- Medium Pressure IGP Type IPC
- Medium Pressure IGP Type IPA
- High Pressure IGP Type IPH
- High Pressure IGP Type IPV
- High Pressure IGP Type IPVS
Parts Lists
About Voith Turbo H + L Hydraulic (VTHL)
Voith Turbo H + L Hydraulic (VTHL) is a world-class manufacturer of innovative components and systems of fluid-technical drive and control engineering. Voith systems are characterized by:
- High drive dynamics – with fast switching valves and high-dynamic servo valves
- Energy-saving – through internal gear pumps with high efficiencies, low and high-pressure systems with automatic change-over and accumulator charging technology
- Application-optimized – of devices up to sub systems with highest functionality
- Proven in practice and reliability – in many areas of mechanical engineering
Voith Internal Gear Pumps

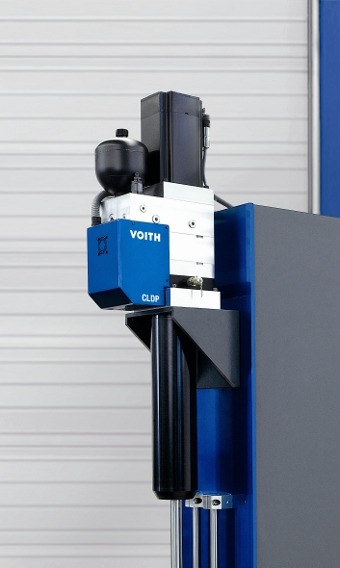

Voith Hydraulic Punch System
Fluid Dynamics is a Stocking Distributor for Voith Products.
